What benefits does WiiM Pro Plus bring compared to the WiiM Pro?

WiiM Pro Plus

The best audio
quality of any WiiM
streamer. Ever.

Pro Plus

What are the differences
between WiiM Pro and
WiiM Pro Plus

Super easy setup

WiiM Pro will pop up automatically in the WiiM Home app.Follow the in-app guide and start streaming music in less than 2 minutes.

Set up WiiM Pro and Pro Plus

Unrivaled Sound Quality up to 192 kHz/24-bit

Diverging from the norm of resampling to set sample rate and bit depth, WiiM Pro stands out by delivering unaltered audio up to 192kHz, 24-bit quality. That's the same as an artist's recording in the studio. The advanced TI PCM5121 DAC produces a remarkable 106 dB SNR and an impressive -92dB THD+N performance.

Unrivaled Sound Quality up to 192 kHz/24-bit

All your content in one app

We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.

Spotify

Spotify

TIDAL

TIDAL

Qobuz

Qobuz

TuneIn

TuneIn

Deezer

Deezer

iHeartRadio

iHeartRadio

Amazon Music

Amazon Music

Amazon Alexa

Amazon Alexa

Pandora

Pandora

SoundCloud

SoundCloud

Napster

Napster

Calm Radio

Calm Radio

vTuner

vTuner

SoundMachine

SoundMachine

Radio Paradise

Radio Paradise

Roon

Roon

  • Spotify Connet Spotify Connect
  • AirPlay 2 AirPlay 2
  • Chromecast Chromecast
  • TIDAL Connect TIDAL Connect
  • DLNA DLNA
  • Alexa Cast Alexa Cast
  • Roon Ready Roon Ready
Use your Spotify app as your remote for the WiiM Pro and stream directly from Spotify Cloud, works for both Spotify Free and Premium users.
Spotify Connect
Stream audio from iPhone, iPad, Mac computer or Apple TV to one or multiple audio devices at the same time. Use Siri on your phone or HomePod to control music selection, volume, and playback.
AirPlay 2
Stream music, TV audio, radio station, podcast and local content from Chromecast-enabled apps to one or multiple audio devices at the same time. Use Google voice assistant in your phone, speaker and TV to control music playback.
Chromecast
Use your TIDAL app as your remote to control music playback through WiiM Pro.
TIDAL Connect
Use WiiM Pro as your DLNA receiver and stream music from your own Cloud server, PC, or NAS.
DLNA
Play music with other Alexa devices in a group or use voice to control it from another Alexa built-in device.
Alexa Cast

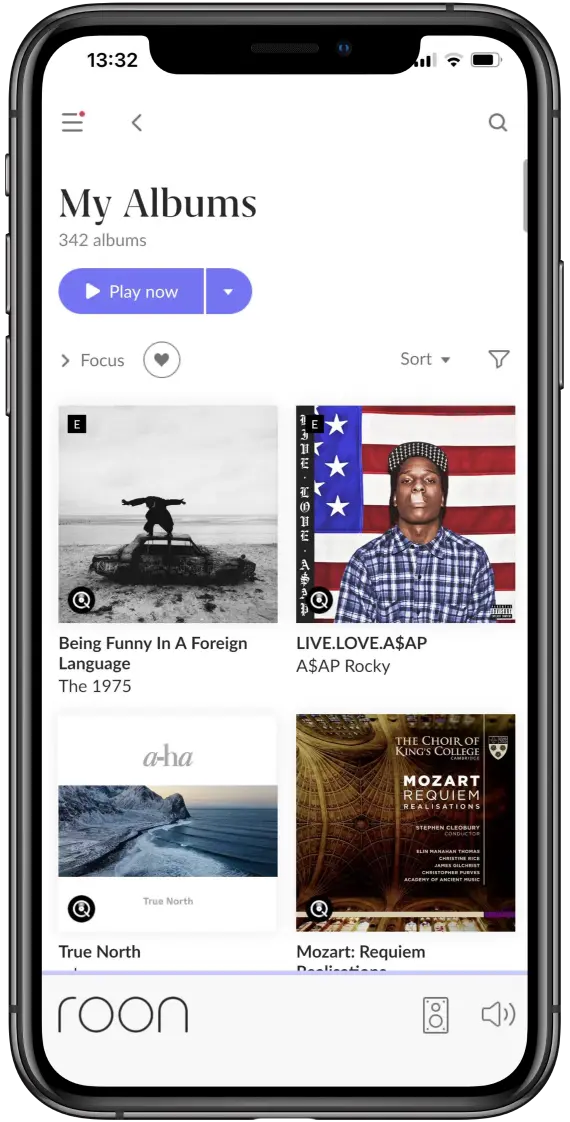

Use your Roon app as your remote to control music playback through WiiM Pro.
Roon Ready
  • Spotify Connect

    Use your Spotify app as your remote for the WiiM Mini sound system, works for both Spotify Free and Premium users.

  • Airplay 2

    Stream audio from iPhone, iPad, Mac computer or Apple TV to one or multiple audio devices at the same time. Use Siri on your phone or HomePod to control music selection, volume, and playback.

  • Chromecast Audio

    Stream music, TV audio, radio station, podcast and local content from Chromecast-enabled apps to one or multiple audio devices at the same time. Use Google voice assistant in your phone, speaker and TV to control music playback.

  • TIDAL Connect

    Use your TIDAL app as your remote to control music playback through WiiM Pro.

  • DLNA

    Use WiiM Pro as your DLNA receiver and stream music from your own Cloud server, PC, or NAS.

  • Works with Alexa

    Play music with other Alexa devices in a group or use voice to control it from another Alexa built-in device.

  • Roon Ready

    Use your Roon app as your remote to control music playback through WiiM Pro.

Play music everywhere with multi-room audio

Easily build your multiroom sound system with your existing AirPlay 2 speakers, Amazon Echo, and Google Home devices. Using your legacy audio devices, you can create a more flexible multiroom sound system with multiple WiiM Pros, WiiM Minis, or Linkplay-powered devices. WiiM Pro supports multiroom from various audio source inputs, including WiFi, BT, Aux, and SPDIF input, making it versatile with almost every music listening option.

Play music everywhere with multi-room audio

Multiple EQ options

Cater to your listening taste by applying multiple EQ options including the 26 preset EQs, bass/treble adjustment, 10-band graphic EQ and parametric EQ.

Multiple EQ options

Automate your routines

Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.

Automate your routines
Works with Sir

Works with Siri

Alexa, and Google voice Assistants

Use your favorite voice assistants to select music, control playback volume, and more.

Alexa, and Google voice Assistants

Which WiiM product is right for you?

WiiM Mini

WiiM Mini

Audio Amplification
-
Main Purpose
Connected to amplifier or powered speaker for streaming
Pair with a Sub
-
USB Port (Storage/Audio Out)
-
Ethernet
-
DAC IC
TI PCM 5121
Analog Out SNR
106dB
THD+N (Analog Out)
-92dB (0.0025%)
Analog Input (ADC)
Fixed 48k, 16bit
Chromecast Audio
-
Group with Nest speakers and Display
-
Group with Echo speakers and Display
Y
Alexa Multiroom with UHD
-
Group with HomePods
Y
Works with Alexa
Y
Works with Google
-
Works with Siri
Y
Group with WiiM or Linkplay devices
Y
AirPlay 2
Y
2-Way Bluetooth
Y
Roon Ready
-
DLNA
Y
Spotify Connect & TIDAL Connect
Y
Gapless Playback
Y
10-band Graphics EQ
Y
Linkplay Music Streaming Platform
Y
CPU
Dualcore A7
DRAM
128 MB
Flash
128 MB
Audio Input Port
AUX 3.5mm jack
Audio Output Port
AUX 3.5mm jack, Optical
WiiM Pro

WiiM Pro

Audio Amplification
-
Main Purpose
Connected to amplifier or powered speaker for streaming
Pair with a Sub
-
USB Port (Storage/Audio Out)
-
Ethernet
Y
DAC IC
TI PCM 5121
Analog Out SNR
106dB
THD+N (Analog Out)
-92dB(0.0025%)
Analog Input (ADC)
Fixed 48k, 16bit
Chromecast Audio
Y
Group with Nest speakers and Display
Y
Group with Echo speakers and Display
Y
Alexa Multiroom with UHD
Y
Group with HomePods
Y
Works with Alexa
Y
Works with Google
Y
Works with Siri
Y
Group with WiiM or Linkplay devices
Y
AirPlay 2
Y
2-Way Bluetooth
Y
Roon Ready
Y
DLNA
Y
Spotify Connect & TIDAL Connect
Y
Gapless Playback
Y
10-band Graphics EQ
Y
Linkplay Music Streaming Platform
Y
CPU
Quad Core A53
DRAM
512 MB
Flash
512 MB
Audio Input Port
Line-in, Optical
Audio Output Port
Line-Out, Optical, Coax
WiiM Pro Plus

WiiM Pro Plus

Audio Amplification
-
Main Purpose
Connected to amplifier or powered speaker for streaming
Pair with a Sub
-
USB Port (Storage/Audio Out)
-
Ethernet
Y
DAC IC
AKM 4493SEQ
Analog Out SNR
121dB
THD+N (Analog Out)
-113dB (0.00023%)
Analog Input (ADC)
Up to 192k, 24 bit
Chromecast Audio
Y
Group with Nest speakers and Display
Y
Group with Echo speakers and Display
Y
Alexa Multiroom with UHD
Y
Group with HomePods
Y
Works with Alexa
Y
Works with Google
Y
Works with Siri
Y
Group with WiiM or Linkplay devices
Y
AirPlay 2
Y
2-Way Bluetooth
Y
Roon Ready
Y
DLNA
Y
Spotify Connect & TIDAL Connect
Y
Gapless Playback
Y
10-band Graphics EQ
Y
Linkplay Music Streaming Platform
Y
CPU
Quad Core A53
DRAM
512 MB
Flash
512 MB
Audio Input Port
Line-in, Optical
Audio Output Port
Line-Out, Optical, Coax
WiiM Amp

WiiM Amp

Audio Amplification
Y
(TI TPA3255 Amplifier IC)
Main Purpose
Connected to passive speaker for streaming
Pair with a Sub
Y
USB Port (Storage/Audio Out)
Y
Ethernet
Y
DAC IC
ESS 9018 K2M
Analog Out SNR
98 dB
THD+N (Analog Out)
-92 dB (0.002%)
Analog Input (ADC)
Up to 192k, 24 bit
Chromecast Audio
Y
Group with Nest speakers and Display
Y
Group with Echo speakers and Display
Y
Alexa Multiroom with UHD
Y
Group with HomePods
Y
Works with Alexa
Y
Works with Google
Y
Works with Siri
Y
Group with WiiM or Linkplay devices
Y
AirPlay 2
Y
2-Way Bluetooth
Y
Roon Ready
Y
DLNA
Y
Spotify Connect & TIDAL Connect
Y
Gapless Playback
Y
10-band Graphics EQ
Y
Linkplay Music Streaming Platform
Y
CPU
Quad Core A53
DRAM
512 MB
Flash
512 MB
Audio Input Port
Stereo RCA / Optical / HDMI ARC / USB-A
Audio Output Port
HP terminals / Subwoofer
Audio Amplification
-
-
-
Y
(TI TPA3255 Amplifier IC)
Main Purpose
Connected to amplifier or powered speaker for streaming
Connected to amplifier or powered speaker for streaming
Connected to amplifier or powered speaker for streaming
Connected to passive speaker for streaming
Pair with a Sub
-
-
-
Y
USB Port (Storage/Audio Out)
-
-
-
Y
Ethernet
-
Y
Y
Y
DAC IC
TI PCM 5121
TI PCM 5121
AKM 4493SEQ
ESS 9018 K2M
Analog Out SNR
106 dB
106 dB
121 dB
98 dB
THD+N (Analog Out)
-92dB (0.0025%)
-92dB (0.0025%)
-113dB (0.00023%)
-92dB (0.002%)
Analog Input (ADC)
Fixed 48k, 16 bit
Fixed 48k, 16 bit
Up to 192k, 24 bit
Up to 192k, 24 bit
Chromecast Audio
-
Y
Y
Y
Group with Nest speakers and Display
-
Y
Y
Y
Group with Echo speakers and Display
Y
Y
Y
Y
Alexa Multiroom with UHD
-
Y
Y
Y
Group with HomePods
Y
Y
Y
Y
Works with Alexa
Y
Y
Y
Y
Works with Google
-
Y
Y
Y
Works with Siri
Y
Y
Y
Y
Group with WiiM or Linkplay devices
Y
Y
Y
Y
AirPlay 2
Y
Y
Y
Y
2-Way Bluetooth
Y
Y
Y
Y
Roon Ready
-
Y
Y
Y
DLNA
Y
Y
Y
Y
Spotify Connect & TIDAL Connect
Y
Y
Y
Y
Gapless Playback
Y
Y
Y
Y
10-band Graphics EQ
Y
Y
Y
Y
Linkplay Music Streaming Platform
Y
Y
Y
Y
CPU
Dualcore A7
Quad Core A53
Quad Core A53
Quad Core A53
DRAM
128 MB
512 MB
512 MB
512 MB
Flash
128 MB
512 MB
512 MB
512 MB
Audio Input Port
AUX 3.5mm jack
Line-in, Optical
Line-in, Optical
Stereo RCA / Optical / HDMI ARC / USB-A
Audio Output Port
AUX 3.5mm jack, Optical
Line-Out, Optical, Coax
Line-Out, Optical, Coax
HP terminals / Subwoofer
Back

What are the differences between the WiiM Pro and the WiiM Pro Plus

Better ADC for Line Input

It uses TI Burr-Brown Audio PCM1861 ADC, achieving up to 192kHz/32-bit digital output, 110 dB SNR. Thus, it provides high-fidelity analog to digital conversion for input from a record player, MP3 player, or TV.

PCM1861 ADC

Ultra-low Noise Clock, Power, and Circuit Design

It uses an ultra-low noise clock, power supply, and careful PCB layout to achieve less than –110dB THD+N performance for analog audio output.

ultra-low noise clock

AKM DAC and TI OP AMP for Better Line-Out Audio Quality

It features a new generation AKM 4493SEQ premium DAC that is able to achieve a leading level of low distortion and wide dynamic range thanks to AKM’s Velvet Sound Technology. It supports up to 768 kHz PCM, ideal for the latest high-resolution audio source. Achieve 120 dB (A-wt) SNR, THD+N of 0.00032% (-110 dB) from 44.1k to 192k.

AKM 4493SEQ

Line-out performance

SNR： 120dB (A-wt)

THD+N(1 kHz)： 0.00032% (-110 dB) for 44.1k to 192k

FR curve： +/-0.05dB

FR Curve

FR Curve

SNR

SNR

THD+N

THD+N

Value proposition

Simple system

Simple system

Direct to your AMP or powered speaker without external DAC.
Audio quality is comparable with WiiM Pro connected to the external DAC.(up to $300 price).

Compatibility

Compatibility

Resolve compatibility issues with some (low-end) DACs that don’t handle the clock, variable sample rate/bit depth properly, or don’t support up to 24-bit/192kHz digital input.

Better audio quality for analog input

Better audio quality for analog input

The better audio quality for analog input sources.

Cost Effective

Cost Effective

Save the external DAC and cable costs.

The WiiM Pro Plus was a significant upgrade in terms of audio quality for analog audio input and output, total system cost, and system setup. These enhancements aimed to provide users with a more powerful, high-fidelity, and hassle-free music streaming experience compared to the previous model, the WiiM Pro.

WiiM Pro Plus
